Room Status Indication, Magnehelic? Gage Size

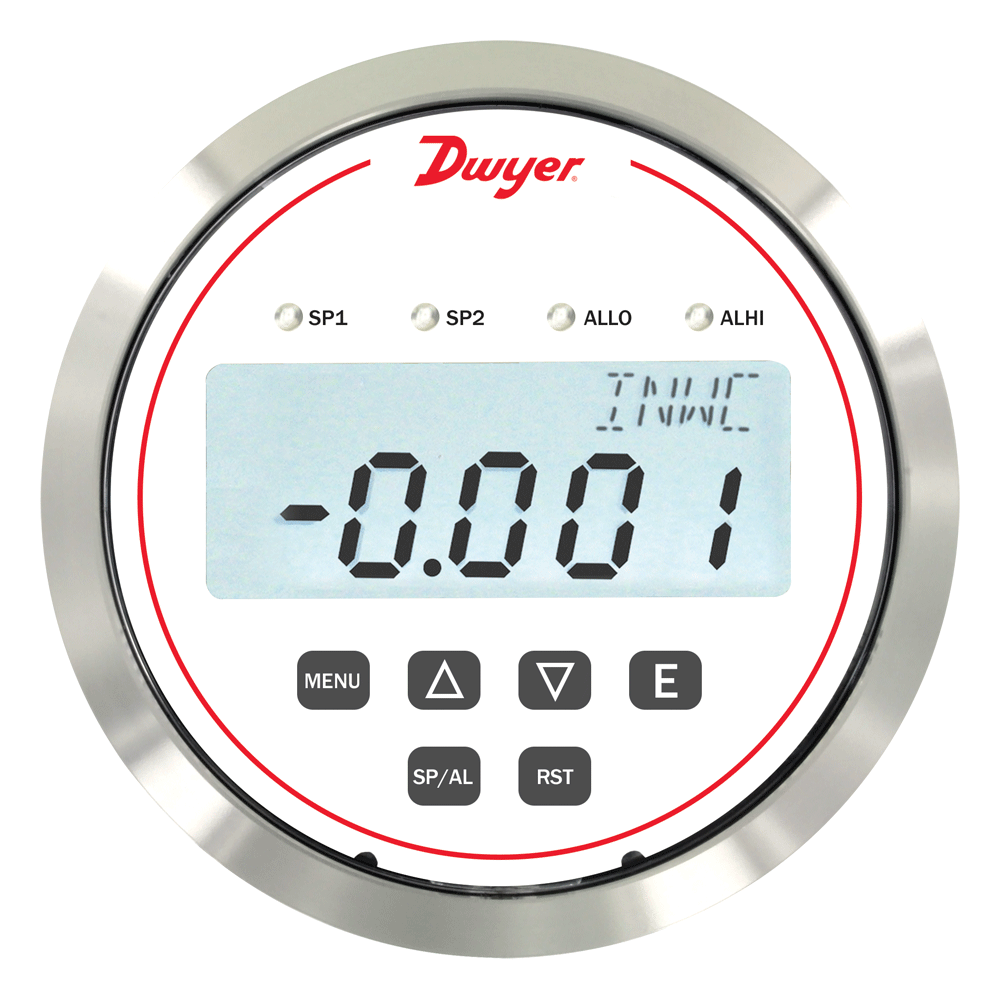

The Series RPME Room Pressure Monitor is designed for low differential pressure applications that require stringent pressure monitoring and alarming. The Series RPME room pressure monitor can be configured to monitor positive or negative pressure in protected environments and clean manufacturing areas. The RPME room pressure monitor is a complete system with a fixed segment LCD which enables access to pressure, security, calibration, and alarm setup. The RPME has a brushed stainless steel bezel that allows for easy cleaning.
The RPME room pressure monitor has built-in status indication LEDs that will appear green when within the user-defined pressure set range and will appear orange when outside of the pressure set range. 2 SPDT independent control relays with adjustable deadbands are also provided along with a 4-20 mA process output.
應用及案例
? Clean manufacturing areas
? Clean rooms
? Research labs
? Vivariums
產品特色
? 2 SPDT relays allow for capability of local alarming and alarming to control system
? Automatic or manual alarm reset
? Visual LED alarms provide immediate local alert allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
? Stores peak and valley process readings
? Same installation diameter as Magnehelic? gage which simplifies field upgrade to RPME room pressure monitor
? Password protected setup menu ensures no errors by untrained personnel
